EVPN VXLAN over a Bridge Domain
When we think about extending Layer-2 networks over VXLAN, the first mental model is usually with a Switch to Switch in a Spine Leaf or maybe orver a DCI. But what happens when your VXLAN VTEP is not a switch but a router? I was reading a blog post on ipspace.net by Ivan Pepelnjak that got me thinking about how this configuration would look over a WAN link.
In this lab, I built VXLAN EVPN over an IPsec-protected WAN between two Cisco Catalyst 8000V routers. Instead of VLANs being the primary Layer-2 construct, we use bridge-domains. Let’s break down how they compare — and why they are conceptually the same thing.
Vlans and Bridge Domains
On a typical switch a vlan is mapped to a VNI that is advertised into EVPN and ultimately Encapsulated by VXLAN, the signal flow looks like this:
Routers don’t operate around VLANs the same way switches do. Instead, they use Bridge Domains. These allow us to turn a routed port into something that looks alot like a switch port. For a router using a Brdige Domain the signal flow looks like this:
Routers are fundamentally Layer-3 devices. When you enable L2 functionality on a router, you’re activating features typically associated with: L2VPN / Ethernet Virtual Circuit (EVC) Instead of VLANs being native objects like on a switch, routers use:
- Service Instances
- Encapsulation dot1q
- Bridge Domains
This gives routers much more flexibility:
- Per-service QoS
- Per-service policy
- L2VPN support (xconnect, EVPN, pseudowire, etc.)
- WAN transport integration (IPsec, GRE, MPLS, etc.)
Routers vs Switches
| IOS/XE Routers | IOS/XE Switches |
|---|---|
| BDI is the L3 gateway | SVI (interface VlanX) is the L3 gateway |
Uses bridge-domain configuration |
Uses vlan configuration |
Uses service instance for access VLAN |
Uses switchport access vlan for access VLAN |
Service instance is added to a bridge-domain |
VLAN is built from switchport VLAN assignments |
Lab Topology

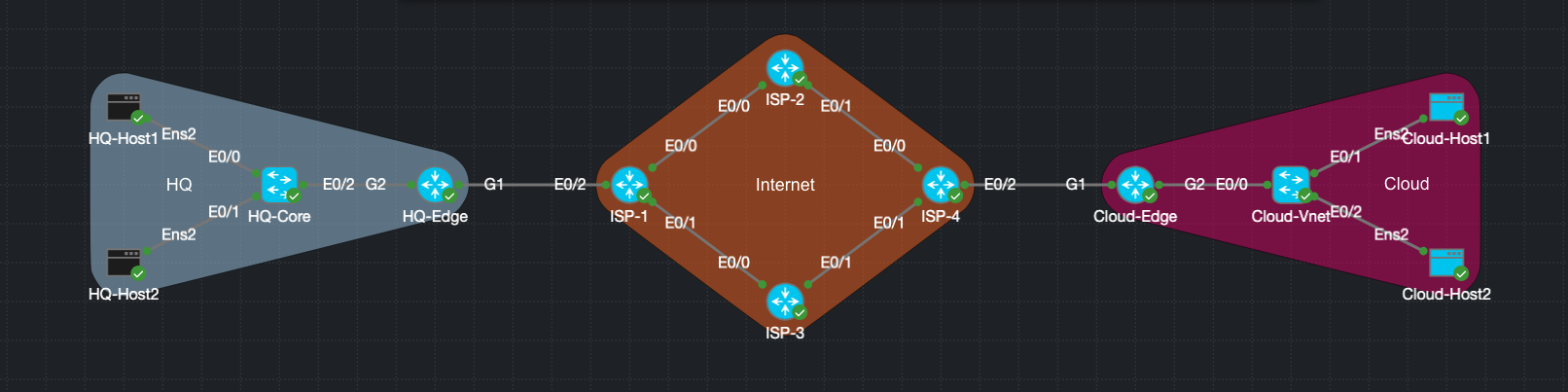

In this lab I am simulating an HQ site connecting to a cloud site over an IPsec tunnel using a VTI (Virtual Tunnel Interface). In addition to this, we are going to stretch a subnet over the VPN tunnel using EVPN VXLAN. The 4 routers in the middle are simply simulating the internet. The Edge routers are where all the fun happens — for this example I am using two Cat8000V routers. The configuration is built up in layers:
- First, the IPsec/IKEv2 VPN is established between the two edge routers, creating a secure tunnel across the simulated internet
- EIGRP is then brought up over the tunnel to advertise the Loopback interfaces, which are used as the VTEP source addresses
- With Loopback reachability established, iBGP (AS 65001) is brought up between the two edge routers to run the EVPN control plane, exchanging MAC and IP routes
- VXLAN is configured on the NVE interface, mapping VNI 10010 to the EVPN instance — this is the data plane that stretches the Layer 2 segment across the tunnel
- Finally, a Bridge Domain is created and tied to both the physical access interface (via a service instance with dot1q encapsulation) and the EVPN/VXLAN instance, completing the stretched Layer 2 domain
HQ Side
- HQ-Host1: Ubuntu endpoint
- HQ-Host2: Ubuntu endpoint
- HQ-Core: L2 access switch, trunks to HQ-Edge
- HQ-Edge: Cat8000V VTEP, runs IPsec + EVPN + VXLAN VNI 10010
Internet
- ISP-1: internet transit
- ISP-2: internet transit
- ISP-3: internet transit
- ISP-4: internet transit
Cloud Side
- Cloud-Edge: Cat8000V VTEP, runs IPsec + EVPN + VXLAN VNI 10010
- Cloud-Vnet: L2 access switch, trunks to Cloud-Edge
- Cloud-Host1: Ubuntu endpoint
- Cloud-Host2: Ubuntu endpoint
Configuration
I am not going to go over how to make a VPN tunnel or EIGRP configuration. I will provide the lab as a .yaml at the end if you would like to look over that. VPN tunnels using VTI are a whole post in themselves. I am going to pick up with the EVPN configuration, quickly go over the VTEP, and then show how the service instance works with bridge domains.
MP-EVPN
Bring up EVPN on both edge routers using their loopback addresses. This is pretty straightforward BGP configuration but I thought I would show it anyway.
- HQ-Edge loopback 1 = 10.200.1.1
- Cloud-Edge: loopback 1 = 10.200.1.2
HQ-Edge
router bgp 65001
bgp log-neighbor-changes
neighbor 10.200.1.2 remote-as 65001
neighbor 10.200.1.2 update-source Loopback1
!
address-family l2vpn evpn
neighbor 10.200.1.2 activate
neighbor 10.200.1.2 send-community extended
exit-address-family
Cloud-Edge
router bgp 65001
bgp log-neighbor-changes
neighbor 10.200.1.1 remote-as 65001
neighbor 10.200.1.1 update-source Loopback1
!
address-family l2vpn evpn
neighbor 10.200.1.1 activate
neighbor 10.200.1.1 send-community extended
exit-address-family
EVPN and VTEP
Here we are going to create the VTEP, tell it to use EVPN, and add a VNI.
interface nve1
no ip address
source-interface Loopback1
host-reachability protocol bgp
member vni 10010 ingress-replication
Then we are going to create an EVPN instance and tell it to use VXLAN for encapsulation and ingress replication for our BUM traffic.
l2vpn evpn
replication-type ingress
router-id Loopback1
!
l2vpn evpn instance 10 vlan-based
encapsulation vxlan
replication-type ingress
Bridge Doamin
This is the new part. We will create a bridge domain and map it to a service instance. This bridge domain will connect the service instance to EVPN, so that anything that hits the service instance will get mapped into EVPN. That service instance then gets applied to an interface with a dot1q tag.
bridge-domain 10
member GigabitEthernet2 service-instance 10
member evpn-instance 10 vni 10010
Apply to an interface
interface GigabitEthernet2
no ip address
service instance 10 ethernet
encapsulation dot1q 10
Verify
First make sure that EVPN is up:
show bgp l2vpn evpn summary
show bgp l2vpn evpn
Now let’s check our VTEPs to make sure that they are peers and that the VNI is up:
Cloud-Edge#show nve peers
'M' - MAC entry download flag 'A' - Adjacency download flag
'4' - IPv4 flag '6' - IPv6 flag
Interface VNI Type Peer-IP RMAC/Num_RTs eVNI state flags UP time
nve1 10010 L2CP 10.200.1.1 4 10010 UP N/A 1w0d
Cloud-Edge#show nve vni
Interface VNI Multicast-group VNI state Mode BD cfg vrf
nve1 10010 N/A Up L2CP 10 CLI N/A
Let’s check our bridge domain to make sure that G2 VLAN 10 is mapping to EVPN as we expect:
Cloud-Edge#show bridge-domain 10
Bridge-domain 10 (2 ports in all)
State: UP Mac learning: Enabled
Aging-Timer: 300 second(s)
Unknown Unicast Flooding Suppression: Disabled
Maximum address limit: 65536
GigabitEthernet2 service instance 10
vni 10010
AED MAC address Policy Tag Age Pseudoport
-----------------------------------------------------------------------------
- 5254.0045.98BF forward dynamic_c 101 GigabitEthernet2.EFP10
- 5254.0004.4192 forward static_r 0 nve1.VNI10010, EVPN
Let’s make sure that we see MAC addresses being advertised by EVPN:
Cloud-Edge#show l2vpn evpn mac
MAC Address EVI BD ESI Ether Tag Next Hop(s)
-------------- ----- ----- ------------------------ ---------- ---------------
5254.0004.4192 10 10 0000.0000.0000.0000.0000 0 10.200.1.1
5254.0045.98bf 10 10 0000.0000.0000.0000.0000 0 Gi2:10
I want to show one final command that came in very handy for me as it seems to wrap everything up very nicely. I am just going to post the output, but note the VTEP IPs, VTEP peers, encapsulation type, bridge domain, and service instance to port mapping:
Cloud-Edge# show l2vpn evpn evi 10 detail
EVPN instance: 10 (VLAN Based)
RD: 65001:10 (cfg)
Import-RTs: 65001:10
Export-RTs: 65001:10
Per-EVI Label: none
State: Established
Replication Type: Ingress
Encapsulation: vxlan
IP Local Learn: Enabled (global)
Adv. Def. Gateway: Disabled (global)
Re-originate RT5: Disabled
AR Flood Suppress: Enabled (global)
Bridge Domain: 10
Ethernet-Tag: 0
State: Established
Flood Suppress: Attached
Core If:
Access If:
NVE If: nve1
RMAC: 0000.0000.0000
Core BD: 0
L2 VNI: 10010
L3 VNI: 0
VTEP IP: 10.200.1.2
Pseudoports:
GigabitEthernet2 service instance 10
Routes: 1 MAC, 2 MAC/IP
Peers:
10.200.1.1
Routes: 1 MAC, 2 MAC/IP, 1 IMET, 0 EAD
At this point HQ-Host1 and Cloud-Host1 can now ping each other over a WAN connection using an IPsec VPN tunnel and VXLAN, as if they are on the same LAN. Here is a link to the .yaml file so that you can spin this up in CML yourself.
