Discontiguous Deployments Of Vxlan
Discontiguous Deployments of Vxlan over an IGP using Catalyst IOS-XE
Traditionally, VXLAN has been associated with data center environments, where the entire network is built as an overlay—most commonly using a spine-and-leaf topology with BGP running in a full mesh. While this model works extremely well in the data center, it does not always translate cleanly into enterprise campus or WAN environments.
Enterprise networks often have far more variability in their topology. They may span multiple physical locations, include legacy routing designs, or rely on a core network that teams are hesitant—or outright unable—to modify. In many cases, the core is treated as a stable transport network, and introducing large-scale changes such as BGP everywhere or a full spine-leaf redesign is simply not realistic.
In this post, I want to explore how EVPN VXLAN can be deployed in a discontiguous enterprise environment, where VXLAN is implemented only at the network edge and stretched across an existing routed core using a simple IGP. The key idea is that we can extend Layer 2 segments between sites without making any configuration changes to the core network itself. All VXLAN and EVPN configuration lives on the edge devices, while the core continues to operate exactly as it does today.
This approach allows us to create a Layer 2 VXLAN stretch across a routed network, using the existing IGP purely for underlay reachability.
EVPN is used to advertise MAC adress to IP mapping, so we know behind what VTEP a MAC address is living, bceause it is not carrying routing information that will be inseted into the routing table we do not need to have a full mesh like we would do with iBGP. The Core Network does not need to understand the state of EVPN, as long as the loopbacks used for the VTEPS can reach each other EVPN will be able to work. AS EVPN is a address family of BGP this gets more complicated if you have to router over eBGP. For my example we wull stick with an IGP for our underlay.
Why This Works
At its core, EVPN is used to advertise MAC address and IP address mappings, allowing VTEPs to learn where endpoints reside within the VXLAN fabric. These advertisements tell us which MAC address lives behind which VTEP, enabling efficient forwarding across the overlay.
Importantly, EVPN does not inject traditional routing information into the global routing table. Because of this, the underlay network does not need to understand anything about EVPN itself. As long as the loopback interfaces used by the VTEPs can reach one another at Layer 3, VXLAN encapsulated traffic can be exchanged successfully.
This is a critical distinction from traditional iBGP designs. Since EVPN is not being used to exchange underlay routing information, we do not require a full iBGP mesh across the network. The core network remains completely unaware of the overlay it simply forwards IP packets between VTEP loopbacks.

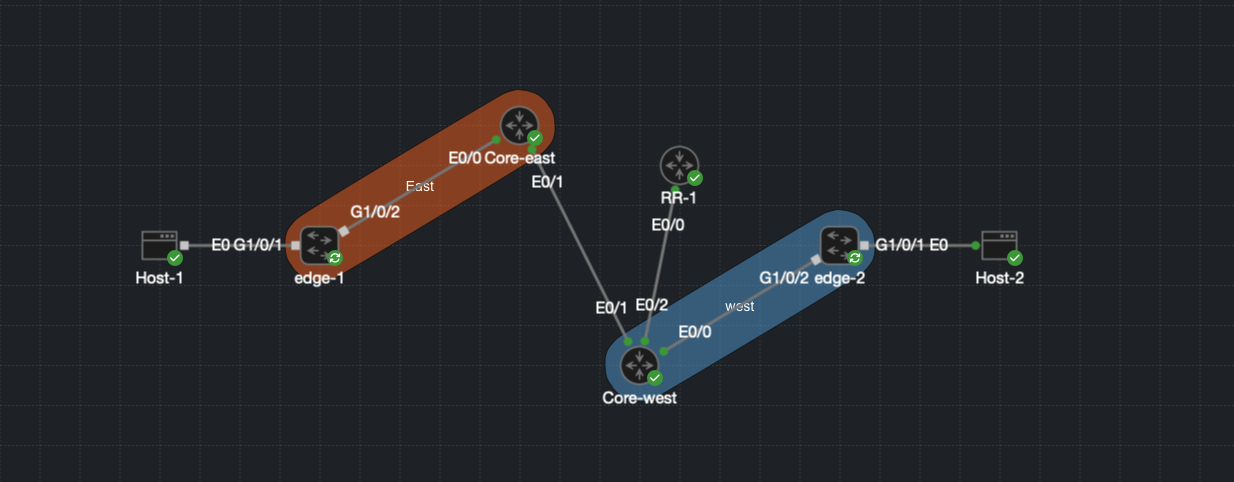

Lab Topology
- edge-1:
10.0.0.245 - edge-2:
10.0.0.246 - Host-A:
192.168.1.100 - Host-B:
192.168.1.101 - Core-East:
10.0.0.248 - Core-West:
10.0.0.249 - RR-1:
10.0.0.13
All routers and switches have full IP reachability via EIGRP. The addresses listed above are loopback interfaces used for routing and control-plane communication.
Although no configuration changes are made on Core-East or Core-West, traffic must still traverse these devices. They act purely as transport nodes.
A route reflector (RR-1) is included for the EVPN control plane. While a route reflector is not strictly required in a small lab, it is important to include one to demonstrate how EVPN VXLAN can scale without requiring a full iBGP mesh.
MP-BGP EVPN Configuration
In this lab, both edge devices form a single EVPN session with the route reflector. One important benefit of using a route reflector is that the edge routers can have identical BGP configurations, simplifying deployment and scaling.
Edge-1
router bgp 65000
bgp log-neighbor-changes
neighbor 10.0.0.13 remote-as 65000
neighbor 10.0.0.13 update-source Loopback0
!
address-family l2vpn evpn
neighbor 10.0.0.13 activate
neighbor 10.0.0.13 send-community both
exit-address-family
Edge-2
router bgp 65000
bgp log-neighbor-changes
neighbor 10.0.0.13 remote-as 65000
neighbor 10.0.0.13 update-source Loopback0
!
address-family l2vpn evpn
neighbor 10.0.0.13 activate
neighbor 10.0.0.13 send-community both
exit-address-family
RR-1
router bgp 65000
bgp log-neighbor-changes
neighbor 10.0.0.245 remote-as 65000
neighbor 10.0.0.245 route-reflector-client
neighbor 10.0.0.246 remote-as 65000
neighbor 10.0.0.246 route-reflector-client
!
address-family l2vpn evpn
neighbor 10.0.0.245 activate
neighbor 10.0.0.245 send-community extended
neighbor 10.0.0.245 route-reflector-client
neighbor 10.0.0.246 activate
neighbor 10.0.0.246 send-community extended
neighbor 10.0.0.246 route-reflector-client
Verify EVPN on the Router Refelector
RR-1#show bgp l2 evpn sum
BGP router identifier 10.0.0.13, local AS number 65000
BGP table version is 20, main routing table version 20
5 network entries using 1960 bytes of memory
5 path entries using 1160 bytes of memory
3/3 BGP path/bestpath attribute entries using 888 bytes of memory
1 BGP extended community entries using 40 bytes of memory
0 BGP route-map cache entries using 0 bytes of memory
0 BGP filter-list cache entries using 0 bytes of memory
BGP using 4048 total bytes of memory
BGP activity 14/8 prefixes, 14/8 paths, scan interval 60 secs
5 networks peaked at 23:15:58 Jan 31 2026 UTC (00:03:02.032 ago)
Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd
10.0.0.245 4 65000 113 120 20 0 0 01:34:01 2
10.0.0.246 4 65000 116 125 20 0 0 01:33:44 3
VLANS and Vteps
This is going to be almost identical to my previous post but I will go over it one more time. At this point we need to create the vlans we want to extend and them map them to a VNI. After this we will need to create the VTEP and add our member VNI.
Create vlan
vlan 10
name VXLAN
Vlan to VNI maping:
vlan configuration 10
member evpn-instance 10 vni 10000
Create the EVPN Instance:
l2vpn evpn instance 10 vlan-based
encapsulation vxlan
replication-type ingress
VTEP Creatation:
interface nve1
no ip address
source-interface Loopback0
host-reachability protocol bgp
member vni 10000 ingress-replication
Verification
Confirms that the remote VTEP is reachable and that the VXLAN tunnel is established.
edge-1# show nve peers
'M' - MAC entry download flag 'A' - Adjacency download flag
'4' - IPv4 flag '6' - IPv6 flag
Interface VNI Type Peer-IP RMAC/Num_RTs eVNI state flags UP time
nve1 10000 L2CP 10.0.0.246 3 10000 UP N/A 01:41:53
Show vni to vlan mappings
edge-1#show nve vni
Interface VNI Multicast-group VNI state Mode VLAN cfg vrf
nve1 10000 N/A Up L2CP 10 CLI N/A
Show that Mac Address learning is working
edge-1#show l2route evpn mac
EVI ETag Prod Mac Address Next Hop(s) Seq Number
----- ---------- ----- -------------- ---------------------------------------------------- ----------
10 0 L2VPN 5254.001c.3e19 Gi1/0/1:10 0
10 0 BGP 5254.0081.339c V:10000 10.0.0.246 0
Confirms that Type 2 (MAC/IP) and Type 3 (IMET) routes are being exchanged correctly, completing the EVPN control plane.
edge-1#show bgp l2vpn evpn
BGP table version is 29, local router ID is 10.0.0.245
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
x best-external, a additional-path, c RIB-compressed,
t secondary path, L long-lived-stale,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found
Network Next Hop Metric LocPrf Weight Path
Route Distinguisher: 10.0.0.245:10
*> [2][10.0.0.245:10][0][48][5254001C3E19][0][*]/20
0.0.0.0 32768 ?
*>i [2][10.0.0.245:10][0][48][52540081339C][0][*]/20
10.0.0.246 0 100 0 ?
*>i [2][10.0.0.245:10][0][48][52540081339C][32][192.168.1.101]/24
10.0.0.246 0 100 0 ?
Route Distinguisher: 10.0.0.246:10
*>i [2][10.0.0.246:10][0][48][52540081339C][0][*]/20
10.0.0.246 0 100 0 ?
*>i [2][10.0.0.246:10][0][48][52540081339C][32][192.168.1.101]/24
10.0.0.246 0 100 0 ?
Route Distinguisher: 10.0.0.245:10
*> [3][10.0.0.245:10][0][32][10.0.0.245]/17
Network Next Hop Metric LocPrf Weight Path
0.0.0.0 32768 ?
*>i [3][10.0.0.245:10][0][32][10.0.0.246]/17
10.0.0.246 0 100 0 ?
Route Distinguisher: 10.0.0.246:10
*>i [3][10.0.0.246:10][0][32][10.0.0.246]/17
10.0.0.246 0 100 0 ?
This design demonstrates how VXLAN EVPN can be deployed incrementally in enterprise environments by treating the core as a pure transport network. By limiting VXLAN and EVPN configuration to the edge, we gain the benefits of Layer 2 extension and modern control-plane signaling without forcing disruptive changes to the existing routing infrastructure.
