Integrated Routing and Bridging (IRB)

Integrated Routing and Bridging (IRB) refers to the capability of a VTEP (VXLAN Tunnel Endpoint) to perform both Layer 2 switching and Layer 3 routing within a VXLAN fabric. In a traditional network these functions are separated, but in a modern EVPN VXLAN deployment a single VTEP can bridge traffic within the same subnet while simultaneously routing traffic between different subnets. The key question IRB answers is: when a packet needs to be routed, which VTEP does the routing — the ingress or the egress? The answer depends on which IRB model you deploy.

Asymmetric IRB vs Symmetric IRB

Asymmetric IRB

In Asymmetric IRB, the ingress VTEP performs both routing and bridging, while the egress VTEP performs only bridging. The traffic flow looks like this:

  1. A frame arrives at the ingress VTEP1 From Server-East
  2. The ingress VTEP, which is VTEP,1 routes the packet to the destination subnet’s SVI
  3. The packet is then switched across the VXLAN fabric to the egress VTEP2, using the destination VNI 6502
  4. VTEP2 bridges the packet to the local endpoint
  5. Return traffic will do the same resulting in VTEP2 routing the traffic and then using VNI 6501 to Switch the Traffic

Because routing happens at ingress, return traffic takes a completely different VNI path, it will be routed at the far end and switched back using the source VNI. This asymmetry is where the name comes from. The critical implication here is that every VNI for every subnet must exist on every VTEP that needs to participate in inter-subnet routing. If VTEP-A needs to route between VLAN 10 and VLAN 20, both VNIs must be locally configured on every VTEP in the fabric.

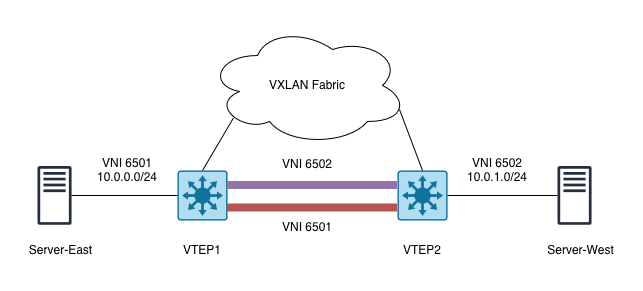

VXLAN-IRB-AS

Symmetric IRB

In Symmetric IRB, both the ingress and egress VTEPs perform both routing and bridging. A special Layer 3 transit VNI (L3VNI) is introduced to carry routed traffic between VTEPs. The traffic flow looks like this:

  1. The ingress VTEP1 bridges the packet into the source Layer 2 VNI, then routes it into the L3VNI
  2. The packet traverses the VXLAN fabric encapsulated in the L3 transit VNI 6503
  3. The egress VTEP routes the packet from the L3 VNI 6503 into the destination Layer 2 VNI
  4. The packet is bridged to the local endpoint

Because both sides perform routing, return traffic uses the same L3 transit VNI 6503, making the forwarding behavior symmetric.

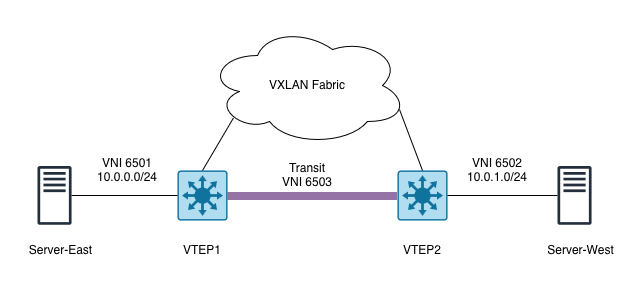

VXLAN-IRB-SYM

Gateway Modles

There a 2 modles that are used when it comes to where the L3 Gateway should be for each subenet in the EVPN VXLAN Fabric:

Distributed Anycast Gateway (DAG) — every VTEP acts as the default gateway for its locally connected hosts, all sharing the same gateway IP and MAC address across the fabric. This enables optimal local routing, supports seamless VM mobility, and is the recommended model for most deployments. The key insight is that because every VTEP advertises the same SVI address, a host always has a local gateway regardless of which VTEP it is connected to. In the example below, Server-East1 and Server-West both use 10.0.1.1 as their default gateway for VLAN 12, when they need to reach each other, traffic is bridged directly across L2 VNI 6502 without any routing needed. However, when Server-East1 or Server-West need to reach Server-East2 (VLAN 13), the local VTEP performs the routing decision using its SVI, no traffic needs to travel to a central gateway first.

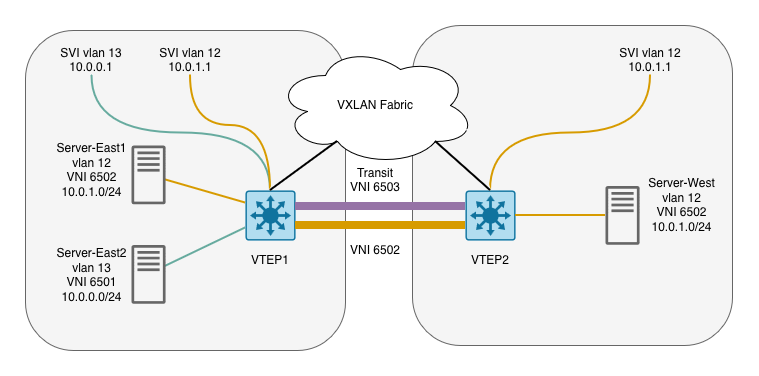

VXLAN-IRB-DAG

Centralized Default Gateway (CGW) — a single designated VTEP handles all inter-subnet routing for the fabric. All other VTEPs perform Layer 2 bridging only and forward traffic to the centralized gateway for routing. This model is useful when inter-subnet traffic needs to pass through a firewall or centralized policy enforcement point, but it introduces a potential bottleneck and single point of failure.

It is typical to use a both Types of Gateways in a deployment, so that inter-subnet traffic usese DAG and traffic going to a WAN or policy enforement point will use a CGW. In the following weeks I hope to biuld on these Concepts to create some Labs that some both DAG and CGW in action.
